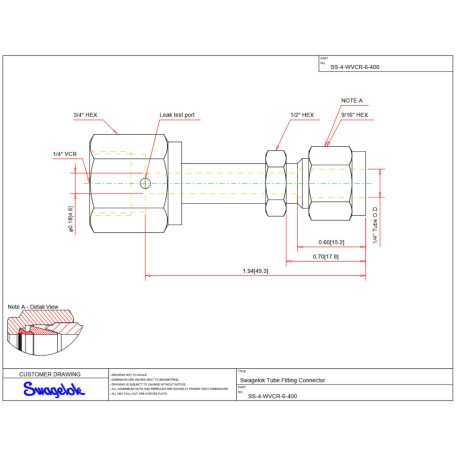

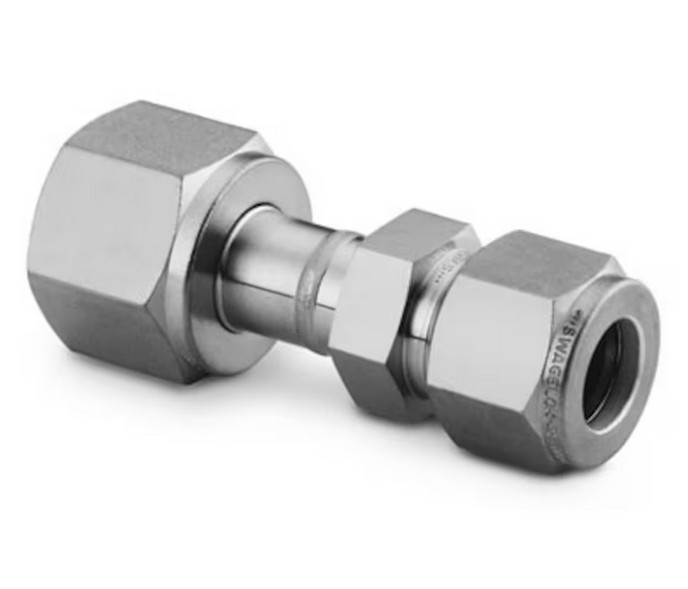

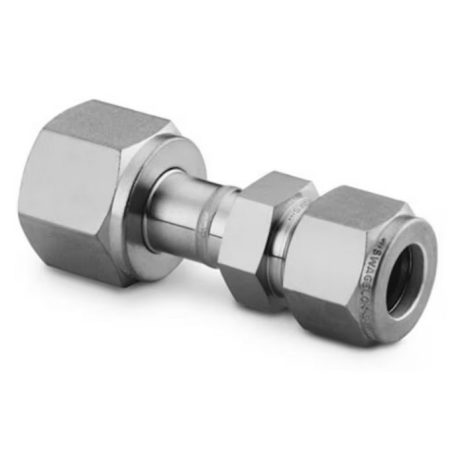

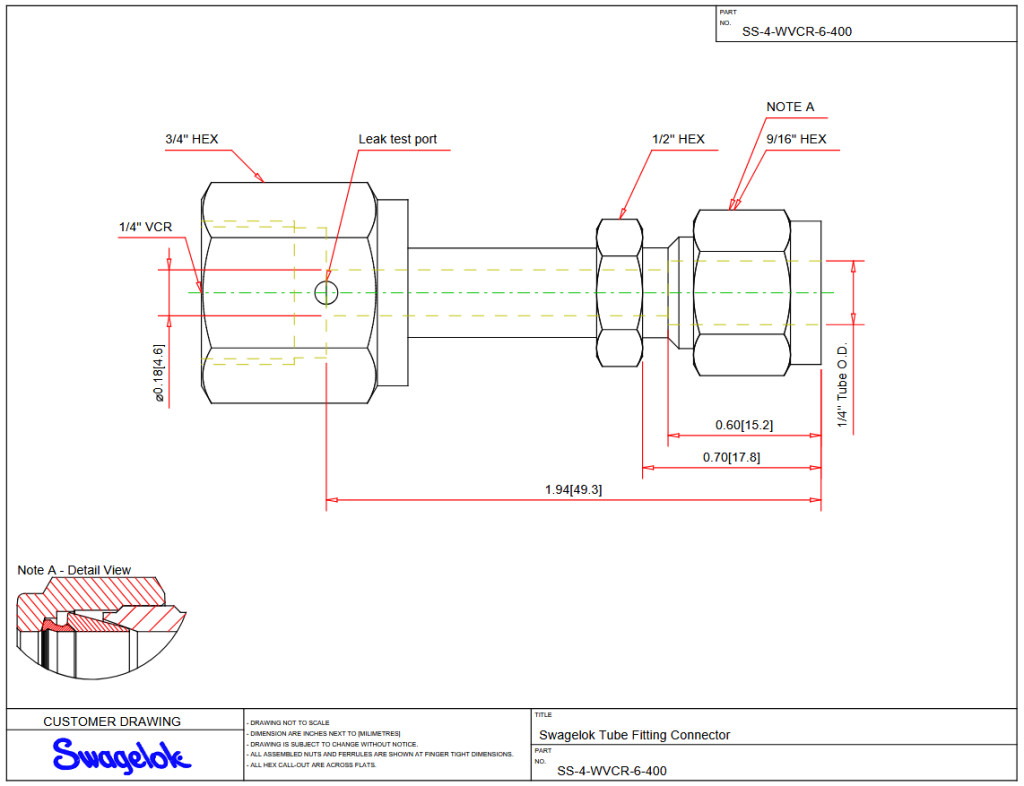

Swagelok STS "VCR" csatlakozó 1/4" SW (Tube) x 1/4" BM (VCR) SS-4-WVCR-6-400

Name: Swagelok STS "VCR" csatlakozó 1/4" SW (Tube) x 1/4" BM (VCR) SS-4-WVCR-6-400
SKU: SWA-SS-4-WVCR-6-400
Price: 54265 HUF

54 265 Ft/db

Részletek

316 Stainless Steel Welded VCR Face Seal Fitting, Swagelok Tube Fitting Connector, 1/4 in. WVCR x 1/4 in. Tube Fitting

Body Material	316 Stainless Steel
Cleaning Process	Standard Cleaning and Packaging (SC-10)
Connection 1 Size	1/4 in.
Connection 1 Type	Welded Female VCR® Metal Gasket Face Seal Fitting
Connection 2 Size	1/4 in.
Connection 2 Type	Swagelok® Tube Fitting
Flow Restrictor	No
eClass (4.1)	37020713
eClass (5.1.4)	37020590
eClass (6.0)	37020500
eClass (6.1)	37020590
eClass (10.1)	37020590
UNSPSC (4.03)	31163100
UNSPSC (10.0)	40142605
UNSPSC (11.0501)	40142613
UNSPSC (13.0601)	40183107
UNSPSC (15.1)	40183107
UNSPSC (17.1001)	40183110

Adatok

Cikkszám

SWA-SS-4-WVCR-6-400

Tömeg

80 g/db
